Motorola

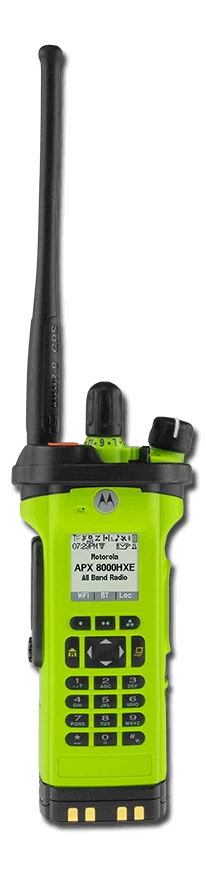

Motorola Solutions' flagship radio for fire and rescue, the APX 8000HXE is designed for the most hazardous conditions. Because the APX 8000HXE is certified to Div 1 HazLoc standards, you can be confident entering areas where unknown chemicals and gases add to an already dangerous situation.
Frequency Band:
VHF, UHF-1, UHF-2, 700 MHz, 800 MHz
Frequency Range:
700/800 (762-776, 792-806, 806-825, 851-870 MHz)
VHF (136-174 MHz)
UHF Range 1 (380-470 MHz)
UHF Range 2 (450-520 MHz)
Power Output:
1-6 W
Number of Channels/Groups/Zones:
3,000 Channels
Standard battery chemistry type:
Lithium Ion
Battery life (based on a 5-5-90 duty cycle):
Channel spacing:
12.5 kHz, 20 kHz, 25 kHz
Dimensions H x W x D (with standard battery)
6.9" x 3.3" x 2.2" (176.5mm x 84mm x 56mm)
Weight (without standard battery)
22.7 oz 643g
Keypad / Keys
Model 2.5: 3 soft keys, 4-way navigation pad, Home and Data buttons
Model 3.5: 4x3 keypad, 3 soft keys, 4-way navigation pad, Home and Data buttons
Display
Model 2.5/3.5: Full bitmap color LCD front display, 2 lines of status icons, 4 lines of text x 14 characters, 1 line of menu x 3 keys, White backlight
Full bitmap mono LCD top display, 1 line of text x 8 characters, 1 line of status icons, Multi-color backlight
Operating temperature
-30ºC / +60ºC
Mil spec
MIL-STD-810 C, D, E, F and G
IP Standards
IP68
Respond with Confidence
Certified to Div1 HazLoc standards, the APX 8000HXE is safe to use in areas where there are high concentrations of flammable gas, vapor, liquid or dust.
All Bands, No Boundaries
The APX 8000HXE transmits and receives on all commonly used frequencies, so your fire and rescue workers can communicate with different agencies using the same radio.
Sound Matters
Make sure you can hear - and be heard. The APX 8000HXE adaptive audio engine gives you the loudest, clearest audio in any environment.
Conquer Chaos
With a water-tight seal, drop-resistant dual battery latch, pressure-tested tempered glass display and a shock-absorbing aluminum alloy endoskeleton, the APX 8000HXE is built to survive everything from falls to floods.
Purpose-Built, Mission Ready
Communicate instantly when lives are on the line. With an intuitive design and exaggerated controls, the APX 8000HXE is purpose-built for fire and rescue workers.
All the Support you Need
Motorola Solutions offers three levels of service plans—Premier, Advanced, and Essential—so you can manage in the way that suits you best.
Sean Eriksen gives a quick overview of the APX 8000HXE – Motorola Solutions' new flagship radio for fire and rescue which is designed for the most hazardous conditions.
The APX 8000XE is redefining mission-critical communications by delivering an ultra-durable radio that combines unlimited interoperability, loud audio, and secure Wi-Fi connectivity. When combined with the XE500 Remote Speaker Microphone, you get the ultimate mission-critical solution designed for safety personnel in extreme environments.
 | AN000342A01 All Band/GPS antenna |
| PMAF4040 700/800 MHz, GPS whip antenna |
 | PMNN4547 IMPRES 2 Li-Ion 3100 mAh battery, IP68 rugged (UL); requires radio firmware R25.01.00 or greater otherwise the radio fuel gauge will be inaccurate |
 | PMNN4573 IMPRES 2 Li-Ion 4600 mAh battery, IP68 rugged (UL); requires radio firmware R25.01.00 or greater otherwise the radio fuel gauge will be inaccurate |
| PMNN4891 APX hazloc clamshell battery pack IP68, NIFC approved, requires 12 AA Alkaline or Lithium batteries (not included); requires radio firmware R36.01.00 or greater otherwise will result in Wrong Battery display on the radio |
 | NTN2570 Mission-Critical Wireless Earpiece with 12” cable and push-to-talk pod |
 | NTN2571 Mission-Critical Wireless push-to-talk pod |
 | NNTN8442 Mission-Critical Wireless Remote Control Keyfob with programmable buttons |
 | PMLN7052 1- Wire Surveillance kit with Translucent Acoustic tube for Wireless PTT Pods |
 | NNTN8294 1- Wire Earbud for Wireless Push-to-Talk pod with 11.5” cable, Black |
 | NNTN8295 1- Wire Earbud for Wireless Push-to-Talk pod with 45” cable, Black |
 | NNTN8296 Covert Audio Kit for Mission-Critical Wireless PTT Pod |
 | NNTN8385 Y-Adapter and Retention Hook for Mission-Critical Wireless Push-to-Talk Pod |
 | RLN4920 neck loop for Discreet Earpiece Kit |
 | NNTN8434 Accessory Kit, Completely Discreet Wireless Surveillance Kit |
 | NTN2572 Replacement Wireless Earpiece 12-inch cable |
 | RLN6489 Mission-Critical Wireless Covert Pack-N-Go Kit, Basic. Kit includes: NNTN8296 Basic Mission-Critical Wireless Covert Kit, NTN2571 Mission-Critical Wireless Push-to-Talk (PTT) Pod and NNTN8442 Mission Critical Wireless Remote Con-trol Unit |
 | RLN6501 Mission-Critical Wireless Covert Pack-N-Go Kit, Advanced. Kit includes: All contents of Covert Pack-n-Go Kit plus RLN4922 Completely Discreet Earpiece Kit and NNTN8385 Wireless neck loop Y-adapter |
| PMLN7954 Carry holder for 2.5 and 3.5 model radios |
| PMLN7955 Leather carry case with D-ring (compatible battery: PMNN4745) |
| RLN6434 Travel Charger with voltage regulated vehicular charger adapter, custom charger base, mounting bracket, and coil cord |
 | RLN5313 1-Wire Receive-Only Surveillance Kit with Translucent Tube, Black, 3.5mm Threaded. Requires BDN6783 |
| PMLN5096 Earset D-Shell |
 | PMLN6853 Heavy-Duty Behind-the-Head Headset with Noise-Cancelling boom microphone, noise reduction = 24dB (On Ear Cup PTT) |
 | PMLN7467 Heavy-Duty Over-the-Head Headset with Noise-Cancelling boom microphone, noise reduction = 24dB |
 | PMMN4059 IMPRES Windporting Public Safety Microphone (18 inch cable) with 3.5mm NON-Threaded Audio Jack, Volume Control, Orange Button. PSM Antenna required. Large (IP55). VHF not supported. 700/800 MHz only. |
 | PMMN4060 IMPRES Windporting Public Safety Microphone (24 inch cable) with 3.5mm NON-Threaded Audio Jack, Volume Control, Orange Button. PSM Antenna required. Large (IP55). VHF not supported. 700/800 MHz only. |
| PMMN4060_SP01 Public safety microphone (24 inch cable) PSM Antenna required. VHF not supported. Recommended for use with 7/800MHz radios. |
 | PMMN4061 IMPRES Windporting Public Safety Microphone (30 inch cable) with 3.5mm NON-Threaded Audio Jack, Volume Control, Orange Button. PSM Antenna required. Large (IP55). VHF not supported. 700/800 MHz only. |
 | PMMN4135 XVP850 RSM with channel knob |
| PMMN4135_TAA XVP850 RSM with channel knob TAA compliant |
 | PMMN4136 XVP850 RSM without channel knob |
| PMMN4136_TAA XVP830 RSM without channel knob TAA compliant |
| PMMN4152_T XVE500 High impact green, no channel knob, Xtreme temperature cable |
| PMMN4152_TBLK XVE500 black housing, no channel knob, Xtreme temperature cable |
| PMMN4154_T XVE500 high impact green, channel knob, Xtreme Temperature Cable |
| PMMN4154_TBLK XVE500 black housing, channel knob, Xtreme temperature cable |
| PMMN4158 WM800 wireless RSM |
