Motorola

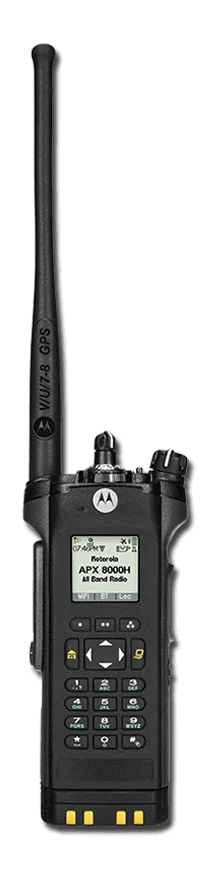

We know the job puts your officers in harm's way every day. The last thing they need to worry about is safe communication. Certified to the stringent Div1 HazLoc standards, the APX 8000H is designed for use in areas where there are routinely dangerous concentrations of flammable gases, vapors, liquids or combustible dust. The APX 8000H has an adaptive audio engine that provides the provides the loudest, clearest audio at any volume, in any environment.
Of course, communication matters too. Your officers can't afford not to hear—or be heard at any volume, in any environment. We also know that they need to connect with outside agencies, often without a moment to spare. The APX 8000H transmits and receives on all commonly used frequencies so they can communicate with different agencies using the same radio. With its intuitive design and comfortable feel, the APX 8000H is made for the way your officers work.
Frequency Band:
VHF, UHF-1, UHF-2, 700 MHz, 800 MHz
Frequency Range:
700/800 (762-776, 794-806, 806-825, 851-870 MHz)
VHF (136-174 MHz)
UHF Range 1 (380-470 MHz)
UHF Range 2 (450-520 MHz)
Power Output:
1-6 W
Number of Channels/Groups/Zones:
3,000 Channels
Standard battery chemistry type:
Lithium Ion
Battery life (based on a 5-5-90 duty cycle):
Channel spacing:
12.5 kHz, 20 kHz, 25 kHz
Dimensions H x W x D (with standard battery)
6.3" x 3.0" x 1.9" (160 mm x 76 mm x 49 mm)
Weight (without standard battery)
20.0 oz 568g
Keypad / Keys
Model 2.5:3 soft keys, 4-way navigation pad, Home and Data buttons
Model 3.5: 4x3 keypad, 3 soft keys, 4-way navigation pad, Home and Data buttons
Display
Model 2.5/3.5:Full bitmap color LCD front display, 2 lines of status icons, 4 lines of text x 14 characters, 1 line of menu x 3 keys, White backlight
Full bitmap mono LCD top display, 1 line of text x 8 characters, 1 line of status icons, Multi-color backlight
Operating temperature
-20 to +60 ºC (-20 to +140 ºF)
Mil spec
MIL-STD-810 C, D, E, F and G
IP Standards
IP68
Respond with Confidence
Certified to Div1 HazLoc standards, the APX 8000H is safe to use in areas with concentrations of flammable gasses, vapors, liquids, or combustible dust.
All Bands, No Boundaries
The APX 8000H transmits and receives on all commonly used frequencies, so your officers can communicate with different agencies using the same radio.
Sound Matters
Your officers can't afford to not hear—or be heard. The APX 8000H adaptive audio engine gives you the loudest, clearest audio in any environment.
Conquer Chaos
With a water-tight seal, drop-resistant dual battery latch, pressure-tested tempered glass display and a shock-absorbing aluminum alloy endoskeleton, the APX 8000H is built to survive everything from drops to drownings.
Made for the Mission
With its intuitive design and comfortable feel, the APX 8000H is made specifically for the way your officers work and communicate.
All the Support you Need
Motorola Solutions offers three levels of service plans—Premier, Advanced, and Essential—so you can manage in the way that suits you best.
Whichever way you look at it, the new APX 8000H is Motorola Solutions most advanced two-way radio ever. It transmits and receives on all commonly used frequencies – so your officers can communicate with different agencies using the same radio.
 | PMAF4040 700/800 MHz, GPS whip antenna |
 | PMNN4547 IMPRES 2 Li-Ion 3100 mAh battery, IP68 rugged (UL); requires radio firmware R25.01.00 or greater otherwise the radio fuel gauge will be inaccurate |
 | PMNN4573 IMPRES 2 Li-Ion 4600 mAh battery, IP68 rugged (UL); requires radio firmware R25.01.00 or greater otherwise the radio fuel gauge will be inaccurate |
| PMNN4891 APX hazloc clamshell battery pack IP68, NIFC approved, requires 12 AA Alkaline or Lithium batteries (not included); requires radio firmware R36.01.00 or greater otherwise will result in Wrong Battery display on the radio |
 | NTN2570 Mission-Critical Wireless Earpiece with 12” cable and push-to-talk pod |
 | NTN2571 Mission-Critical Wireless push-to-talk pod |
 | NNTN8442 Mission-Critical Wireless Remote Control Keyfob with programmable buttons |
 | PMLN7052 1- Wire Surveillance kit with Translucent Acoustic tube for Wireless PTT Pods |
 | NNTN8294 1- Wire Earbud for Wireless Push-to-Talk pod with 11.5” cable, Black |
 | NNTN8295 1- Wire Earbud for Wireless Push-to-Talk pod with 45” cable, Black |
 | NNTN8296 Covert Audio Kit for Mission-Critical Wireless PTT Pod |
 | NNTN8385 Y-Adapter and Retention Hook for Mission-Critical Wireless Push-to-Talk Pod |
 | RLN4920 neck loop for Discreet Earpiece Kit |
 | NNTN8434 Accessory Kit, Completely Discreet Wireless Surveillance Kit |
 | NTN2572 Replacement Wireless Earpiece 12-inch cable |
 | RLN6489 Mission-Critical Wireless Covert Pack-N-Go Kit, Basic. Kit includes: NNTN8296 Basic Mission-Critical Wireless Covert Kit, NTN2571 Mission-Critical Wireless Push-to-Talk (PTT) Pod and NNTN8442 Mission Critical Wireless Remote Con-trol Unit |
 | RLN6501 Mission-Critical Wireless Covert Pack-N-Go Kit, Advanced. Kit includes: All contents of Covert Pack-n-Go Kit plus RLN4922 Completely Discreet Earpiece Kit and NNTN8385 Wireless neck loop Y-adapter |
Please Contact us for more information
| NNTN7624 IMPRES Single-Unit Rapid Rate Vehicular Charger |
| RLN6434 Travel Charger with voltage regulated vehicular charger adapter, custom charger base, mounting bracket, and coil cord |
 | RLN5313 1-Wire Receive-Only Surveillance Kit with Translucent Tube, Black, 3.5mm Threaded. Requires BDN6783 |
| PMLN5096 Earset D-Shell |
 | PMLN6853 Heavy-Duty Behind-the-Head Headset with Noise-Cancelling boom microphone, noise reduction = 24dB (On Ear Cup PTT) |
 | PMLN7467 Heavy-Duty Over-the-Head Headset with Noise-Cancelling boom microphone, noise reduction = 24dB |
 | PMMN4135 XVP850 RSM with channel knob |
| PMMN4135_TAA XVP850 RSM with channel knob TAA compliant |
 | PMMN4136 XVP850 RSM without channel knob |
| PMMN4136_TAA XVP830 RSM without channel knob TAA compliant |
| PMMN4152_T XVE500 High impact green, no channel knob, Xtreme temperature cable |
| PMMN4152_TBLK XVE500 black housing, no channel knob, Xtreme temperature cable |
| PMMN4154_T XVE500 high impact green, channel knob, Xtreme Temperature Cable |
| PMMN4154_TBLK XVE500 black housing, channel knob, Xtreme temperature cable |
| PMMN4158 WM800 wireless RSM |
