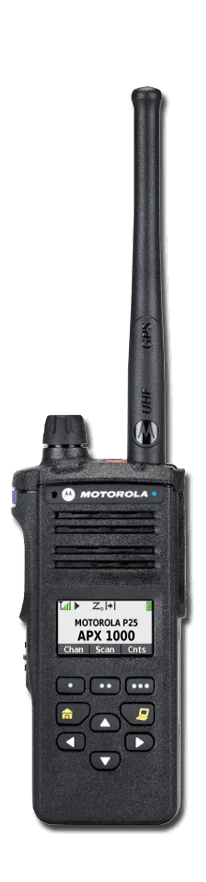

Motorola Solutions APX 1000

Motorola

APX 1000

The APX 1000 provides a complete and complementary look and feel to the APX family of P25 TDMA radios. With a two-microphone design to reduce background noise and excellent RF coverage, the APX 1000 is engineered to give you the smallest P25 Phase 2 capable radio on the market today. Engineered with a simplified control top to ensure ease of use, the APX 1000 is the ideal solution for local government and public works users who require quality P25 functionality.

Frequency Band:
700 MHz, 800 MHz, 900 MHz, UHFR2, UHFR1, VHF

Frequency Range:
700/800 (763-776, 793-806, 806-824, 851-870 MHz)
900 (896-901, 935-940 MHz) Two-Knob Model Only
VHF (136-174 MHz)
UHF Range 1 (380-470 MHz)
UHF Range 2 (450-520 MHz)

Power Output:
1-5 Watts Max

Number of Channels/Groups/Zones:
512 Channels

Standard battery chemistry type:
Lithum Ion

Battery life (based on a 5-5-90 duty cycle):
8-10 hours

Battery life - extended (based on a 5-5-90 duty cycle):
10-12 hours

Channel spacing:
6.25 kHz, 12.5 kHz, 25 kHz

Dimensions H x W x D (with standard battery)
5.26" x 2.37" x 1.72"

Weight (without standard battery)
8.22 oz.

Keypad / Keys
MODEL 1.5: Backlight keypad 3 soft keys
MODEL 2:Backlight keypad, 3 soft keys, 4 direction navigation key, Home and Data buttons
MODEL 3:Backlight keypad, 3 soft keys, 4 direction navigation key, 4x3 keypad, Home and Data buttons

Display
Full bitmap color LCD display, 3 lines of text x 14 characters, 1 line of icons, 1 menu line x 3 menus, White backlight

Operating temperature
-30ºC / +60ºC

Mil spec
810 C, 810 D, 810 E, 810 F, 810 G

IP Standards
IP54

Compact design
Smallest P25 Phase 2 TDMA-capable radio available.

Full-size keypad
Simple to navigate and use.

Color display
High-contrast color display is easy to read in all kinds of light.

Multifunction knob
The multifunction knob is designed for ease of use by combining volume, channel, and ON/OFF settings in one.

Dual microphones
Dual microphone noise suppression technology locates the talker and cancels out any background noise.

AMBE vocoder
Equipped with the latest AMBE +2 digital voice vocoder.

Three radio models
Three radio models allow the user to select the device that best suits the end users environment.

Intelligent lighting
Uses color to notify you of the radio mode, potential emergencies, or specific events. Color alerts provide information at a glance.

Radio profiles
Adjust audio levels, lighting and tones through user selected or automated options. Whether on surveillance or working in bright sunlight, you can customize settings as needed.

Text messaging
Offers a freeform or canned messaging solution so you can efficiently and discreetly send and receive messages.

Voice announcement
Audible, pre-recorded voice file provides a description of the selected channel or zone.

Over-the-air programming
Motorola's POP25 solution allows subscriber radios to be programmed over the air via the ASTRO 25 systems while remaining in the field.

P25 Phase 2 - TDMA
Twice the voice capacity, allowing additional users on the system without the need for additional frequencies or infrastructure.

FAF5259

FAF5259

UHF range 1, GPS stubby antenna

FAF5260

FAF5260

UHF range 2, GPS stubby antenna

NAF5085

NAF5085

700/800 MHz, GPS whip antenna

NAR6593

NAR6593

VHF, GPS whip antenna

NAR6595

NAR6595

1/4 Wave, 700/800 MHz, GPS stubby antenna

PMAE4065

PMAE4065

UHF, GPS whip antenna

NNTN8128

NNTN8128

IMPRES Li-Ion 2000 mAh Slim, Submersible Battery-IP67

NNTN8129

NNTN8129

IMPRES Li-Ion 2350 mAh Intrinsically Safe - FM, Submersible, Battery-IP67

NNTN8560

NNTN8560

APX 4000 two knob radio IMPRES Hi-Cap Li-Ion 2500 mAh battery Submersible (IP57)

No Image Available

PMNN4448

IMPRES Li-Ion 2800 mAh Submersible, Battery-IP67

PMNN4489

PMNN4489

TIA IMPRES Low Volt 2900 mAh - TIA4950 / UL Approved

15012157001

15012157001

Accessory Connector Dust Cover

PMLN4651

PMLN4651

2" Hard Plastic Belt Clip

PMLN5407

PMLN5407

Replacement 2.5" Leather Swivel Belt Loop

No Image Available

PMLN5408

Replacement 2.75" Leather Swivel Belt Loop

PMLN5409

PMLN5409

Replacement 3" Leather Swivel Belt Loop

No Image Available

PMLN6085

Leather Carry Case with 2.5" Swivel Belt Loop

PMLN7008

PMLN7008

2.5" Hard Plastic Belt Clip

No Image Available

PMLN7182

Carry case for APX 4000 two knob radios

PMLN7229

PMLN7229

Replacement belt loop for PMLN7182

No Image Available

AS000129A01

Pocket to use with IMPRES 2 multi-unit charger

BR000272A01

BR000272A01

Wall Mount Bracket for Multi-Unit Charger

No Image Available

HKVN4036

IMPRES Battery Fleet Management License Key

No Image Available

HKVN4036A (NA)

IMPRES Battery Fleet Management License Key (EID)

No Image Available

https://www.motorolasolutions.com/en_us/products/two-way-radio-accessories/impres-battery-fleet-management.html

IMPRES Battery Fleet Management Software

No Image Available

NLN7967

Wall Mount Bracket for IMPRES Multi-Unit Charger

No Image Available

NNTN7392

IMPRES Battery Reader

NNTN7616

NNTN7616

IMPRES Single-Unit Rapid Rate Vehicular Charger

No Image Available

NNTN7676

IMPRES Battery Fleet Management Software

No Image Available

NNTN7677

IMPRES Battery Fleet Management Multi-Unit Charger Interface Unit

No Image Available

NNTN8045

IMPRES Battery Fleet Management Single-Unit Charger Interface Unit

No Image Available

NNTN8169

Insert for NTN1873/WPLN4111 XTS Single-Unit Charger

No Image Available

NNTN8170

Insert for WPLN4108/4130 XTS Multi-Unit Charger (6 per pack)

NNTN8525

NNTN8525

Travel Charger with voltage regulated vehicular charger adapter, custom charger base, mounting bracket, and coil cord

No Image Available

NNTN8870

IMPRES 2 single unit charger reprogramming and Battery Fleet Management interface cable* (*Only supported by NNTN8860, NNTN8860_TAA, NNTN8863)

PMPN4284

PMPN4284

IMPRES 6 pocket, 1 display charger (suggested replacement for WPLN4212 and WPLN4219)

No Image Available

PMPN4289

IMPRES 2 multi-unit charger with 1 display (regional variants: PMPN4284-US/NA; PMPN4293-ANZ; PMPN4290-UK; PMPN4291-ARG; PMPN4292-BRZ; PMPN4289-EU)

No Image Available

PMPN4290

IMPRES 2 multi-unit charger with 1 display (regional variants: PMPN4284-US/NA; PMPN4293-ANZ; PMPN4290-UK; PMPN4291-ARG; PMPN4292-BRZ; PMPN4289-EU)

No Image Available

PMPN4291

IMPRES 2 multi-unit charger with 1 display (regional variants: PMPN4284-US/NA; PMPN4293-ANZ; PMPN4290-UK; PMPN4291-ARG; PMPN4292-BRZ; PMPN4289-EU)

No Image Available

PMPN4292

IMPRES 2 multi-unit charger with 1 display (regional variants: PMPN4284-US/NA; PMPN4293-ANZ; PMPN4290-UK; PMPN4291-ARG; PMPN4292-BRZ; PMPN4289-EU)

No Image Available

PMPN4293

IMPRES 2 multi-unit charger with 1 display (regional variants: PMPN4284-US/NA; PMPN4293-ANZ; PMPN4290-UK; PMPN4291-ARG; PMPN4292-BRZ; PMPN4289-EU)

No Image Available

PMPN4571

IMPRES single-unit charger, US/NA 115V (regional/plug variants: PMPN4576-US/NA 115V; PMPN4571-ANZ,240V; PMPN4572-UK,240V; PMPN4573-ARG,240V; PMPN4575-BRZ,90-260V; PMPN4577-EU,240V)

No Image Available

PMPN4572

IMPRES single-unit charger, US/NA 115V (regional/plug variants: PMPN4576-US/NA 115V; PMPN4571-ANZ,240V; PMPN4572-UK,240V; PMPN4573-ARG,240V; PMPN4575-BRZ,90-260V; PMPN4577-EU,240V)

No Image Available

PMPN4573

IMPRES single-unit charger, US/NA 115V (regional/plug variants: PMPN4576-US/NA 115V; PMPN4571-ANZ,240V; PMPN4572-UK,240V; PMPN4573-ARG,240V; PMPN4575-BRZ,90-260V; PMPN4577-EU,240V)

No Image Available

PMPN4575

IMPRES single-unit charger, US/NA 115V (regional/plug variants: PMPN4576-US/NA 115V; PMPN4571-ANZ,240V; PMPN4572-UK,240V; PMPN4573-ARG,240V; PMPN4575-BRZ,90-260V; PMPN4577-EU,240V)

PMPN4576

PMPN4576

IMPRES single-unit charger, US/NA 115V (regional/plug variants: PMPN4576-US/NA 115V; PMPN4571-ANZ,240V; PMPN4572-UK,240V; PMPN4573-ARG,240V; PMPN4575-BRZ,90-260V; PMPN4577-EU,240V)

No Image Available

PMPN4577

IMPRES single-unit charger, US/NA 115V (regional/plug variants: PMPN4576-US/NA 115V; PMPN4571-ANZ,240V; PMPN4572-UK,240V; PMPN4573-ARG,240V; PMPN4575-BRZ,90-260V; PMPN4577-EU,240V)

No Image Available

RLN5382

Display Module for IMPRES Multi-Unit Charger

No Image Available

WPLN4212

IMPRES Multi-Unit Rapid Rate Charger with 1 Display, 120V (US plug)

No Image Available

WPLN4219

IMPRES Multi-Unit Rapid Rate Charger with 6 Displays, 120V (US plug)

No Image Available

WPLN4232

IMPRES Single-Unit Rapid Rate Charger, 120V (US Plug)

No Image Available

0180300E25

Earguard with Adjustable Loop

0180358B32

0180358B32

Earholder, Black, Small

No Image Available

0180358B33

Earholder, Black, Medium

No Image Available

0180358B34

Earholder, Black, Large

No Image Available

0180358B36

Earholder, Clear, Medium

0180358B37

0180358B37

Earholder, Clear, Large

5080370E97

5080370E97

Replacement Rubber Eartip for RLN6424 (Pack of 25)

5080384F72

5080384F72

Replacement Foam Plugs for RLN5887 and RLN6242. Noise reduction = 25dB (Pack of 50 pairs)

AARLN4885

AARLN4885

Receive-Only Earbud, FM and UL approved

No Image Available

BDN6666

1-Wire Receive-Only Surveillance Kit with Volume Control and Earpiece, Beige, 3.5mm Threaded. Requires BDN6783

BDN6669

BDN6669

2-Wire Surveillance Kit with Extra-Loud Earpiece, Beige, 3.5mm Threaded. Requires BDN6783

BDN6670

BDN6670

3-Wire Surveillance Kit with Extra-Loud Earpiece, Beige, 3.5mm Threaded. Requires BDN6783

BDN6726

BDN6726

1-Wire Receive-Only Surveillance Kit with Earpiece, Black, 3.5mm Threaded. Requires BDN6783

No Image Available

BDN6728

1-Wire Receive-Only Surveillance Kit with Volume Control and Earpiece, Black, 3.5mm Threaded. Requires BDN6783

BDN6783

BDN6783

3.5mm Threaded Audio Adapter

GMLN5261

GMLN5261

Phonak Nano Ear Receiver, Beige (Neckloop must be ordered separately)

GMLN5262

GMLN5262

Phonak Nano Ear Receiver, Brown (Neckloop must be ordered separately)

NNTN7869

NNTN7869

6 Pin Hirose Keyload & Audio Adapter, FM/IS rated

NNTN8125

NNTN8125

Wireless Accessory Kit, Pod + Standard Pair, 12in Cable

NNTN8127

NNTN8127

Wireless Push-to-Talk Pod ONLY with power supply

NNTN8457

NNTN8457

Optional Retention Hooks, Pack of 10

PMLN4620

PMLN4620

D-Shell Rx-Only Earpiece

No Image Available

PMLN5653

IMPRES Ear Microphone with Bone Conduction and programmable button, black

PMLN6123

PMLN6123

IMPRES 3-Wire Surveillance Kit with translucent tube, programmable button, black

PMLN6124

PMLN6124

IMPRES 3-Wire Surveillance Kit with translucent tube, programmable button, beige

No Image Available

PMLN6125

1-Wire Receive-only earpiece, black

No Image Available

PMLN6126

1-Wire Receive-only earpiece, beige

PMLN6127

PMLN6127

IMPRES 2-Wire Surveillance Kit, programmable button, black

PMLN6128

PMLN6128

IMPRES 2-Wire Surveillance Kit, programmable button, beige

PMLN6129

PMLN6129

IMPRES 2-Wire Surveillance Kit with translucent tube, programmable button, black

PMLN6130

PMLN6130

IMPRES 2-Wire Surveillance Kit with translucent tube, programmable button, beige

PMLN7396

PMLN7396

RX-ONLY ADJ D-STYLE W/STD 3.5MM JACK

PMLN7560

PMLN7560

Receive-Only Earpiece with Comfort Eartube

PMLN7696

PMLN7696

SURVEILLANCE,NECKLOOP AND DISCREET EARPIECE KIT

RLN4760

RLN4760

Small Clear Comfortable Earpiece, right ear

No Image Available

RLN4761

Medium Clear Comfortable Earpiece, right ear

No Image Available

RLN4762

Large Clear Comfortable Earpiece, right ear

No Image Available

RLN4763

Small Clear Comfortable Earpiece, left ear

No Image Available

RLN4764

Medium Clear Comfortable Earpiece, left ear

No Image Available

RLN4765

Large Clear Comfortable Earpiece, left ear

RLN4919

RLN4919

Replacement Earwax guards. 5 per pack. Compatible with RLN4922

RLN4920

RLN4920

Phonak Inductive Neckloop (Included in RLN4922)

RLN4921

RLN4921

Phonak Phonito Intra Ear Receiver (Included in RLN4922)

No Image Available

RLN4922

Completely Discreet Earpiece Kit with Neckloop, Beige. Includes RLN4921, RLN4920 and RNN4005

RLN4941

RLN4941

Receive-Only Earpiece with Comfort Eartube, FM approved

No Image Available

RLN5312

2-Wire Surveillance Kit with Translucent Tube, Black, 3.5mm Threaded. Requires BDN6783

RLN5313

RLN5313

1-Wire Receive-Only Surveillance Kit with Translucent Tube, Black, 3.5mm Threaded. Requires BDN6783

No Image Available

RLN5314

1-Wire Receive-Only Surveillance Kit with Translucent Tube, Beige, 3.5mm Threaded. Requires BDN6783

RLN5886

RLN5886

Low Noise Kit with 1 clear rubber eartip

RLN5887

RLN5887

High Noise Kit with 2 foam earplugs

RLN6242

RLN6242

Low Noise Kit with Quick Disconnect translucent tube and clear rubber eartip

No Image Available

RLN6282

Replacement standard clear rubber eartip, Pack of 50

RLN6424

RLN6424

Receive-Only Earpiece with translucent tube and rubber eartip (for HMN4104, HMN4103 and HMN4101 only)

No Image Available

RLN6511

Clear EP7-Small Hearing Protectors [Sonic Defenders] Ultra Earplugs. Noise reduction = 28dB

No Image Available

RLN6511 / RLN6512 / RLN6513

EP7 Sonic Defender, use with RLN4941

No Image Available

RLN6512

Clear EP7-Medium Hearing Protectors [Sonic Defenders] Ultra Earplugs. Noise reduction = 28dB

No Image Available

RLN6513

Clear EP7-Large Hearing Protectors [Sonic Defenders] Ultra Earplugs. Noise reduction = 28dB

No Image Available

RMN5116

Receive and Transmit Boomless Temple Transducer (for HMN4104, HMN4103 and HMN4101 only)

RNN4005

RNN4005

1.4 Volt Battery - Pack of 6

WADN4190

WADN4190

Receive-Only Flexible Earpiece

No Image Available

PMLN5096

Earset D-Shell

No Image Available

PMLN5101

IMPRES Temple Transducer with boom microphone and inline push-to-talk (7580384M19 replacement rubber temple cover, 1 pair)

No Image Available

PMLN5102

Ultra Lite Headset

No Image Available

PMLN5275

Heavy-Duty Behind-the-Head Headset with Noise-Cancelling boom microphone, noise reduction = 24dB

PMLN6852

PMLN6852

Heavy-Duty Behind-the-Head Headset with Noise-Cancelling boom microphone, noise reduction = 24dB (On Ear Cup PTT)

PMLN6853

PMLN6853

Heavy-Duty Behind-the-Head Headset with Noise-Cancelling boom microphone, noise reduction = 24dB (On Ear Cup PTT)

PMLN7466

PMLN7466

Heavy-Duty Over-the-Head Headset with Noise-Cancelling boom microphone, noise reduction = 24dB

PMLN7467

PMLN7467

Heavy-Duty Over-the-Head Headset with Noise-Cancelling boom microphone, noise reduction = 24dB

No Image Available

RMN5058

Lightweight Over-the-Head Headset single muff with in-line push-to-talk and boom mic (REX4648 replacement foam earpad and microphone cover kit)

3075336B17

3075336B17

Replacement Coil Cord Kit for HMN4104, 4103 and 4101

No Image Available

MDRLN4941 - APAC

Receive-only earpiece with comfort eartube. Extra loud audio output

PMKN4107

PMKN4107

Display RSM Interface Cable, 5-Pin Nexus Female Receptacle

PMKN4112

PMKN4112

Display RSM Interface Cable, 4-Pin Nexus Male Plug

PMKN4113

PMKN4113

Display RSM Interface Cable, 12-Pin Hirose Male Connector

PMMN4062

PMMN4062

IMPRES RSM with NON-Threaded Audio Jack, Orange Button, Noise Cancelling (IP54) NOT INTENDED FOR FIRE MARKETS

PMMN4065

PMMN4065

IMPRES RSM with Volume Toggle Switch, Orange Button and 1-Programmable Button, Windporting (IP57)

PMMN4069

PMMN4069

IMPRES RSM with NON-Threaded Audio Jack, Windporting (IP55)

PMMN4099

PMMN4099

IMPRES Windporting RSM with Volume Toggle Switch, Orange Button, 3.5mm NON-Threaded Jack (IP55)

No Image Available

RLN4941_XL - NA

Receive-only earpiece with comfort eartube. Extra loud audio output

No Image Available

RLN5313_XL

Receive-only earpiece, loud version. Required BDN6783 or NMN6274

RLN6075

RLN6075

Replacement Coil Cord Kit for PMMN4062, PMMN4065, PMMN4069 and PMMN4099
