Frequency Band:
VHF , UHF, 700/800 Mhz
Frequency Range:
136-174 MHz, 380-520 MHz, 762-776, 792-806 MHz; 806-825, 851-870 MHz
Power Output:
1-3 Watt
Number of Channels/Zones:
3000 Channels / 200 Zones
Channel spacing:
12.5 / 20 / 25 kHz

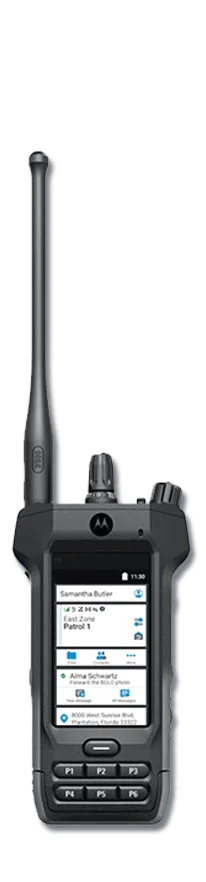

Motorola
APX N70
FOCUSED. FORWARD.
Safety and focus on the front line are paramount. Reliable and intuitive communications devices that are rugged and easy to use, are non negotiable for first responders. Clear communications have proven to be lifesaving in critical moments.
Reliable P25 radios must evolve to offer sophisticated features that work within a larger public safety ecosystem. They must deliver actionable intelligence to provide increased situational awareness during an incident.
We designed our APX N70 explicitly for this purpose. It provides public safety personnel the mission-critical communications and real-time information they need to stay connected and respond safely.
Inherently rugged, it offers an intuitive interface to ensure reliable eyes-up operation. Wherever they’re working, responders will hear and be heard with the loudest and clearest audio possible.
The APX N70 works reliably across a variety of frequencies, modes and protocols. Communications are secure with hardware encryption algorithms and can be updated quickly with batch radio programming and management tools. Optional next generation features such as LTE and smart apps enhance in-field intelligence for improved situational awareness so first responders can respond with focus and efficiency.
Dimensions H x W x D (with standard battery)
5.4 x 2.4 x 1.7 inches
Weight (with standard battery)
17.4 oz
Display
Front: 3.0” Mission-critical Touchscreen: 360x600 TFT 24-bit Full
Color Transflective Display
Top:1.2” Top Display: 200x112 TFT 18-bit Color Transflective
Screen, 1 Line of Icons, 2 Lines of Text, 14 Characters per
Line, 2 mm Toughened Glass Lens
Operating temperature
(-22 to +140 ºF)
Mil spec
810 C, 810 D, 810 E, 810 F, 810 G
IP Standards
IP6x Dust
IPx8 submersion (2 m, 2 hr)
READY FOR THE MISSION.
MADE FOR THE ENVIRONMENT.
Design is more than just being tough. It's also about being simple to use in the most challenging situations that require you to stay focused and ready.
APX N70 is a mission-critical radio, designed and built with legendary APX ruggedness for extreme conditions. It’s tested to military standards, rated IP68, supports immersion in 2 meters of water for up to 4 hours, and includes multiple sensors for improved collaboration and tracking. It’s the radio public safety responders can rely on as their lifeline on the front line today and tomorrow.
APX N70 is rugged and ready for everyday abuse. But should it fail, we will make it right. Rely on us to help get your radios fixed and back in the field where they belong. Our Hardware Repair and Accidental Damage Protection services deliver predictable costs, to give you peace of mind.
SVX Video Remote Speaker Microphone
Voice and video, combined without compromise
What if your life was simpler? By converging Motorola Solutions industry-leading APX NEXT and APX N70 radio lines and body camera technology, they have transformed what it means to be on the front line.Now, your team can get the best of both worlds, by accessing mission-critical communications, evidential video capture and public safety-grade AI from one device, without sacrificing usability.
Brochures
- APX N70 Brochure
- APX N70 Datasheet
- SVX video remote speaker microphone Brochure
- SVX video remote speaker microphone Data Sheet
- APX Securing Mission Critical Communications Brochure
Catalogs
Spec Sheets
SmartConnect
SmartLocate
SmartMapping
SmartMessaging
SmartProgramming
SmartTouch
ViQi Virtual Assistant
Videos
APX N P25 Radios - Ensuring a Secure Radio Solution Inside and Out
Introducing APX N P25 Line of Radios
APX N P25 Radios - Combining classic ergonomics with new interfaces
Antennas
 | AN000411A01 Whip Antenna, 762-870 mHz, 15cm, Ferrule |
 | AN000414A01 136-174 MHz VHF Whip antenna |
| AN000418A01 Stubby Antenna, 762-870 mHz, 10cm, Ferrule |
| AN000451A01 380/530 MHz stubby antenna |
| AN000452A01 380/520 MHz Whip Antenna * not applicable for APX N70XE * (Requires PMLN8334A GCAI to GCAI mini cable adapter) |
| PMLN8334 GCAI mini to GCAI Cable Adapter |
Batteries
 | PMNN4816 IMPRES 2 Li-Ion 3200 mAh Battery, IP68 Rugged* |
 | PMNN4817 IMPRES 2 Li-Ion 4400 mAh Battery, IP68 Rugged* |
 | PMNN4818 IMPRES 2 Li-Ion 3650 mAh Battery, IP68 Rugged* |
Carry Accessories
 | PMLN5407 Replacement 2.5" Leather Swivel Belt Loop |
| PMLN5408 Replacement 2.75" Leather Swivel Belt Loop |
 | PMLN5409 Replacement 3" Leather Swivel Belt Loop |
| PMLN8371 APX N70 Classic Holster (Belt clip sold separately) |
| PMLN8372 APX N70 hybrid leather holster, PMNN4816 battery |
| PMLN8373 APX N70 hybrid leather holster, PMNN4817 battery |
| PMLN8374 APX N70 hybrid leather holster, PMNN4818 battery |
 | PMLN8507 APX N70 2.5" belt clip |
 | PMLN8508 APX N70 3" belt clip |
Chargers
| A000178A02 Pocket to use with IMPRES 2 Multi-Unit Fast Charger |
| NLN7967 Wall Mount Bracket for IMPRES Multi-Unit Charger |
 | PMPN4591 IMPRES 2 Multi-Unit Fast Charger with 6 Displays and 6 Integrated USB Charging Ports, US/NA, 100-240V |
 | PMPN4604 IMPRES 2 Single-Unit Fast Charger, US/NA 115V |
| PMPN4639 APX NEXT Vehicle Charger |
| PS000040A02 Replacement power supply unit for IMPRES 2 single-unit fast charger, US/NA 115V |
Earpieces & Surveillance Accessories
 | PMLN8295 2-WIRE SWIVEL LOUD AUDIO EARPIECE WITH EARTIP |
 | PMLN8337 1-WIRE SINGLE EARBUD WITH REMOVABLE EARHOOK LOUD AUDIO EARPIECE |
 | PMLN8341 1-WIRE SURVEILLANCE KIT WITH LOUD AUDIO TRANSLUCENT TUBE |
 | PMLN8342 2-WIRE SURVEILLANCE KIT WITH LOUD AUDIO TRANSLUCENT TUBE |
 | PMLN8343 3-WIRE SURVEILLANCE KIT WITH LOUD AUDIO TRANSLUCENT TUBE |
 | PMMN4128 RM780 IMPRES™ RSM, 3.5mm earpiece, radio controls, IP68, HAZLOC |
Headsets
 | PMLN8085 Behind-the-Head Headset |
 | PMLN8086 Over-the-Head Headset |
 | PMLN8265 CH-3 Series Over-the-Head Headset with Nexus Connector (requires PMMN4150 or PMLN8297 adapter) |
 | PMLN8266 CH-3 Series Neckband Headset with Nexus Connector (requires PMMN4150 or PMLN8297 adapter) |
 | PMLN8267 CH-3 Series Hard Hat Attach Headset with Nexus Connector (requires PMMN4150 or PMLN8297 adapter) |
 | PMLN8297 GCAI-MINI PTT NEXUS ADAPTER (3M-Peltor) |
Speaker Microphones
 | PMMN4141 XVP750 RSM with channel knob |
| PMMN4141_TAA XVP750 RSM with channel knob (TAA) |
 | PMMN4142 XVP730 RSM without channel knob |
| PMMN4142_TAA XVP730 RSM without channel knob (TAA) |
| PMMN4158 WM800 wireless RSM |
| PMMN4172 XVE500m high impact green, no channel knob, GCAI mini |
| PMMN4172_BLK XVE500m black, no channel knob, GCAI mini |
| PMMN4173 XVE500m high impact green, channel knob, GCAI mini |
| PMMN4173_BLK XVE500m black channel knob, GCAI mini |
| PMMN4177 RM780 RSM (windporting mic) |
| PMMN8200 SVX Video Remote Speaker Microphone |
